Fully automatic packaging line for liquids/laundry detergent/beverages/flavorings/mineral water
Fully automatic packaging line for liquids/laundry detergent/beverages/flavorings/mineral water
Fully automatic packaging line for liquids/laundry detergent/beverages/flavorings/mineral water
  1. Fully automatic packaging line for liquids/laundry detergent/beverages/flavorings/mineral water
  2. Fully automatic packaging line for liquids/laundry detergent/beverages/flavorings/mineral water
  3. Fully automatic packaging line for liquids/laundry detergent/beverages/flavorings/mineral water

Fully automatic packaging line for liquids/laundry detergent/beverages/flavorings/mineral water

Compact desktop pouch filler/capper: Servo-driven for sub-1% precision filling & torque-controlled capping. Handles 50–330mm pouches (20–30/min). SUS316 contact surfaces. Stores 20 recipes. Integrated process from filling to discharge. Ideal for cosmetics/pharma.

  1. ​Precision Performance​
    • Servo-driven filling (≤1% accuracy) and capping (adaptive torque control)
  2. ​Compact Efficiency​
    • Space-saving desktop design (890×870×805mm) with 20–30 pouches/min throughput
  3. ​Hygienic Construction​
    • Pharma-grade SUS316 contact surfaces + full SUS304 frame
  4. ​Seamless Automation​
    • Integrated cycle: pouch feeding → filling → capping → discharge
  5. ​Flexible Changeovers​
    • Stores 20 parameter sets + mold-swappable for diverse pouch sizes (50–330mm)
  6. ​Industry Adaptability​
    • Processes liquids/semi-viscous products (cosmetics, food, pharma)
Please enable JavaScript in your browser to complete this form.
Click or drag files to this area to upload. You can upload up to 3 files.
Supported Upload Formats: png / pdf / cad / 3d / jpg / 7z / zip ( File Size <10M )
Extra Features
  • On-Site Installation And Debugging
  • ISO 9001:2008 Certification
  • Warranty Period 365 Days

Description

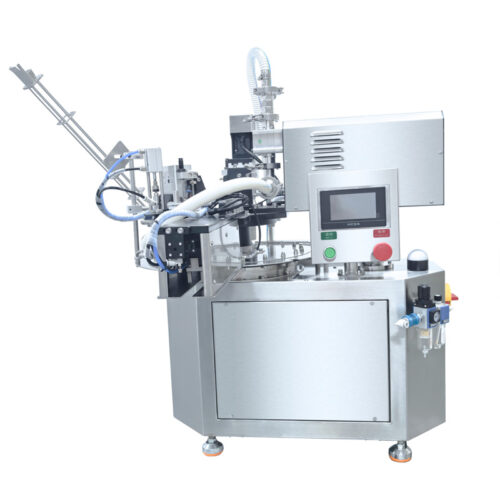

微信图片 20250612072012 1

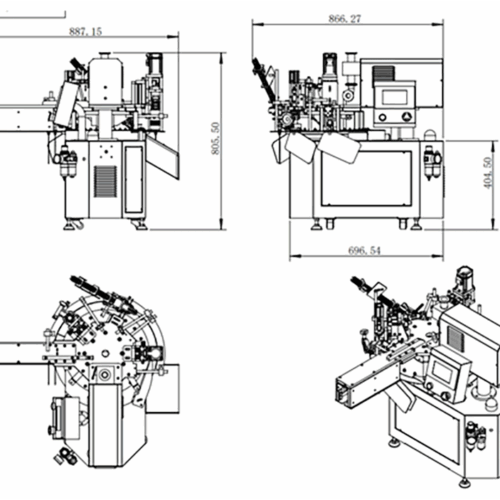

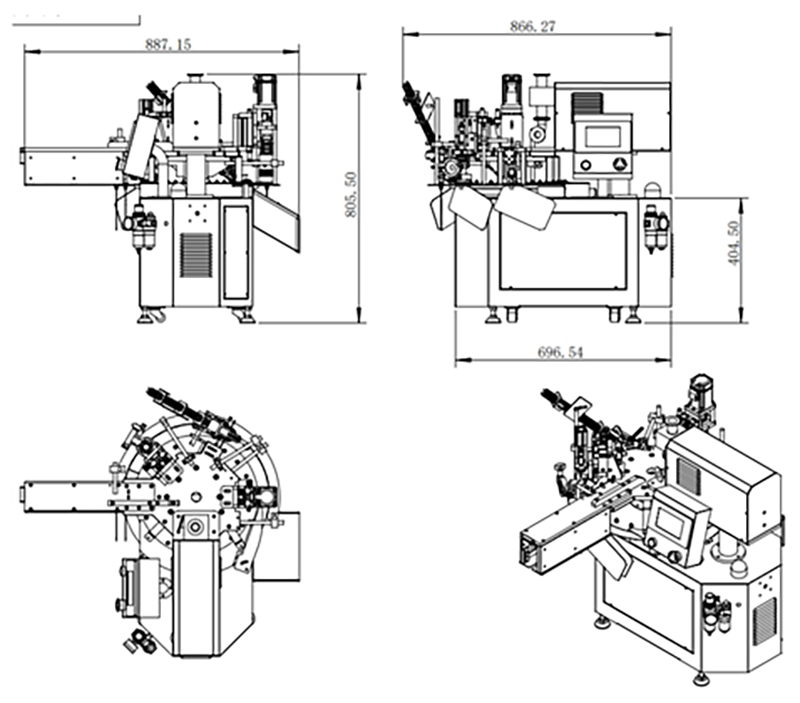

洗衣液CAD

Main Features and Structural Characteristics

  1. Dual-language (Chinese/English) touch screen for intuitive and easy operation.

  2. PLC control system ensures more stable performance, with the ability to adjust parameters without stopping the machine.

  3. Capable of storing up to 20 sets of parameters for quick and accurate product changeovers.

  4. Servo motor-driven filling ensures higher precision.

  5. Servo motor-controlled capping provides better torque adjustment and control.

  6. Integrated process: pouch feeding, filling, cap placing, capping, and optional date coding—completed in one cycle.

  7. Compatible with various pouch specifications by replacing molds (optional feature).

  8. Machine software includes pre-configured controls for an optional air-assisted refilling system (available upon request or user-supplied).

Scope of Application

Suitable for liquid or semi-viscous products in industries such as personal care, food, cosmetics, pharmaceuticals, and chemicals.

Main Machine Specifications

  • Model: Desktop-Type Single-Head Self-Priming Pouch Filling and Capping Machine (60L)

  • Suitable Products: Liquids and pastes

  • Filling Pump: 60L Gear Pump

  • Pouch Width: 50–330 mm

  • Pouch Length: 50–330 mm

  • Production Speed: 20–30 pouches per minute
    (Actual output depends on product viscosity and fill volume)

  • Voltage & Frequency: 220V, 50Hz

  • Total Power: Approx. 1800W

  • Net Weight: Approx. 60 kg

  • Aluminum Components: Anodized aluminum turntable

  • Frame Material: SUS 304 stainless steel

  • Contact Material: SUS 316 stainless steel (for product-contact parts)

  • Rotary Table Mechanism: Cam Indexer

  • Machine Dimensions (mm): Approx. L890 × W870 × H805

  • Working Process:
    Manual pouch loading → automatic pouch feeding → automatic filling → manual cap placing → automatic capping → automatic pouch discharge
